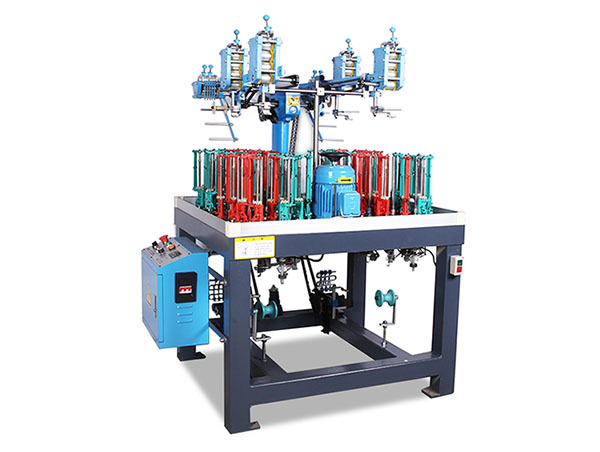

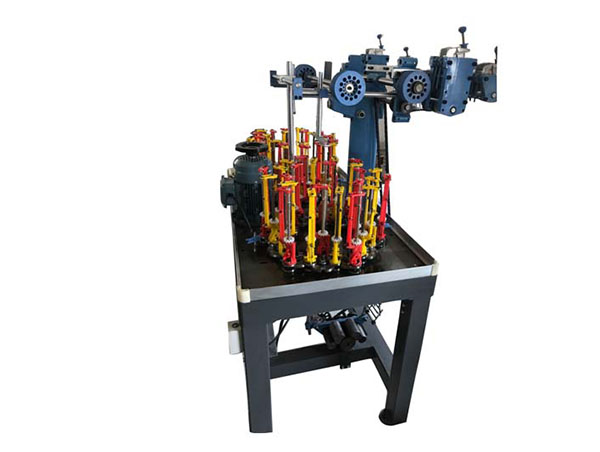

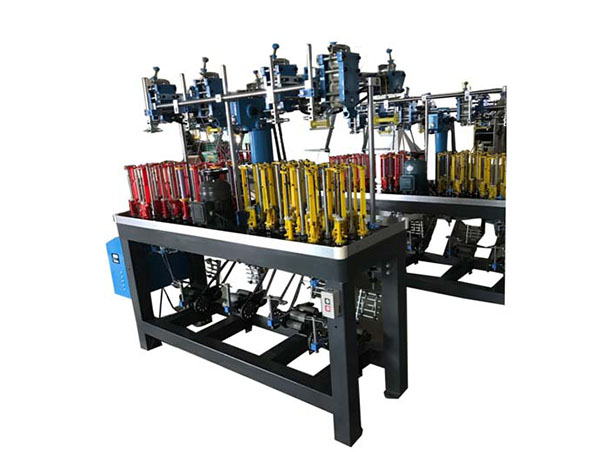

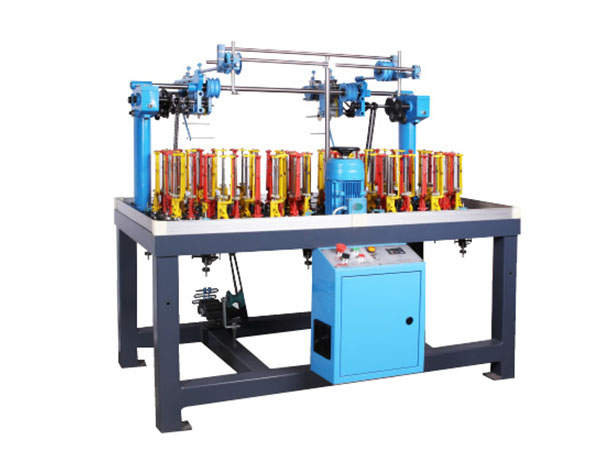

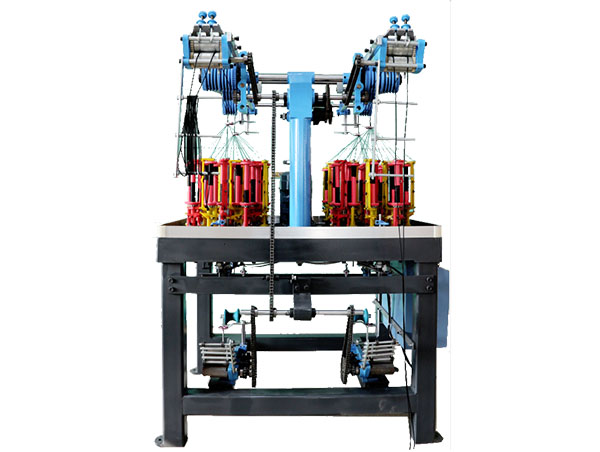

Braiding Machine Function:

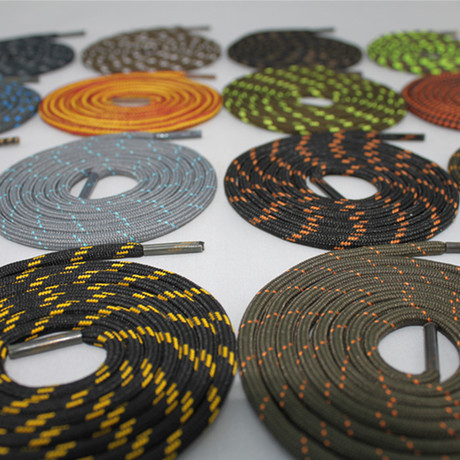

used for producing shoelaces,curtain ropes,fishing net line,elastic cords,marine roes,draw cords and so on .
Braiding Machine Features :
special material steel,CNC high-precision processing , automatic broken yarn stop device , rubber feeder,
delta inverter , good motor .
Braiding Machine Advantages:
lower noise , smooth operation ,fast speed , stable quality
Braiding Machine Technical Datas :

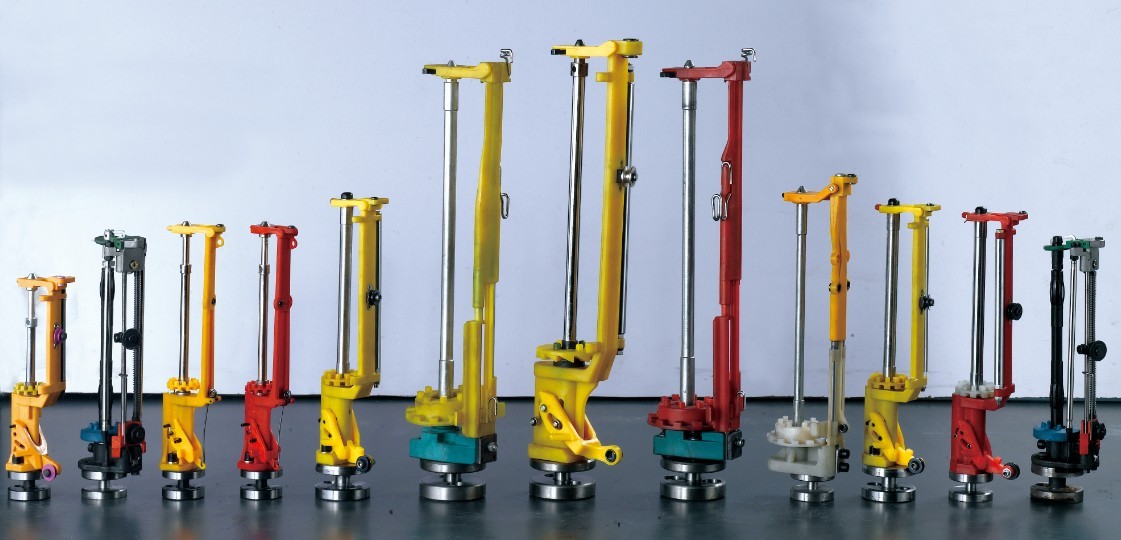

Model | Head | Spindle | Horngear size(mm) | Motor (HP) | Carrier type |
8/9 | 8 | 9 | 90 | 1 HP | 48*157MM |
4/13 | 4 | 13 | 90 | 1HP | 48*157MM |
4/16 | 4 | 16 | 90 | 1 HP | 48*157MM |
4/17 | 4 | 17 | 90 | 1HP | 48*157MM |
2/21 | 2 | 21 | 90 | 1 HP | 48*157MM |
2/24 | 2 | 24 | 90 | 1 HP | 48*157MM |
2/25 | 2 | 25 | 90 | 1HP | 48*157MM |
2/32 | 2 | 32 | 90 | 1 HP | 48*157MM |
2/33 | 2 | 33 | 90 | 1HP | 48*157MM |
2/40 | 2 | 40 | 90 | 2 HP | 48*157MM |
2/41 | 2 | 41 | 90 | 2HP | 48*157MM |
1/48 | 1 | 48 | 90 | 1 HP | 48*157MM |
